Steel Structures Engineered to Perform Built Faster. Built Stronger.

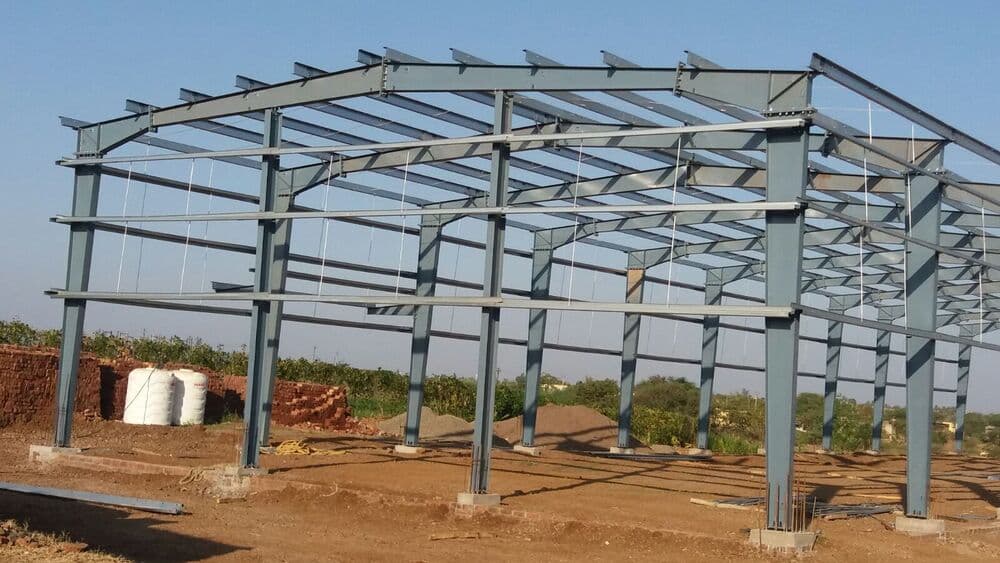

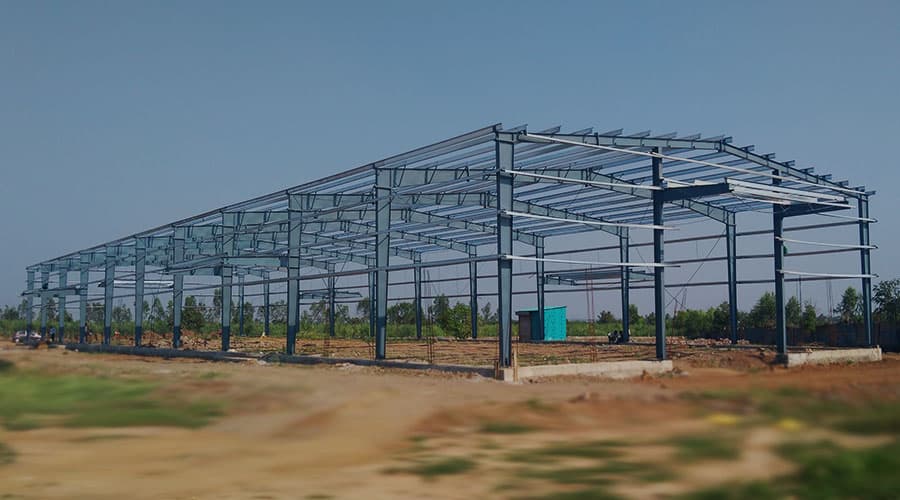

A pre-engineered building is a steel structure whose frame is designed and fabricated in a factory to suit one specific building, then transported and bolted together on site. Because members are sized to the actual loads rather than picked from standard sections, a PEB typically uses less steel, costs less and goes up far faster than conventional construction.

For industrial buildings the saving usually shows up in three places: less steel through optimised member design, a much shorter construction period, and lighter foundations because the structure itself weighs less. The exact figure depends on span, height and site, but the schedule saving is often worth more to a client than the material saving.

A typical industrial shed of 1,000–2,000 m² runs about 3–5 weeks of fabrication after drawing approval, then 2–4 weeks of erection and sheeting. Foundations proceed in parallel with fabrication, which is where most of the time advantage comes from.

We do all three in-house, and we recommend taking them together. When one party owns the drawing, the steel and the erection, a fit-up problem gets solved instead of becoming a dispute. We will supply material only if you already have an erection contractor you trust.

We fabricate at Fajalpur near Vadodara and serve Vadodara, Anand, Padra, Vasad, Dabhoi, Halol, Jambusar, Godhra, Bharuch, Ankleshwar, Dahej, Ahmedabad, Surat and Vapi across Gujarat, plus Ratlam in Madhya Pradesh. Projects outside this belt are considered case by case.

Structural design follows IS 800, with loading per IS 875 and seismic provisions per IS 1893 where applicable. Plate material is normally IS 2062 E250 or E350 procured against test certificates, and fabrication follows the approved shop drawings with dimensional and weld checks recorded.
